EAN: 73-30130-01688-0

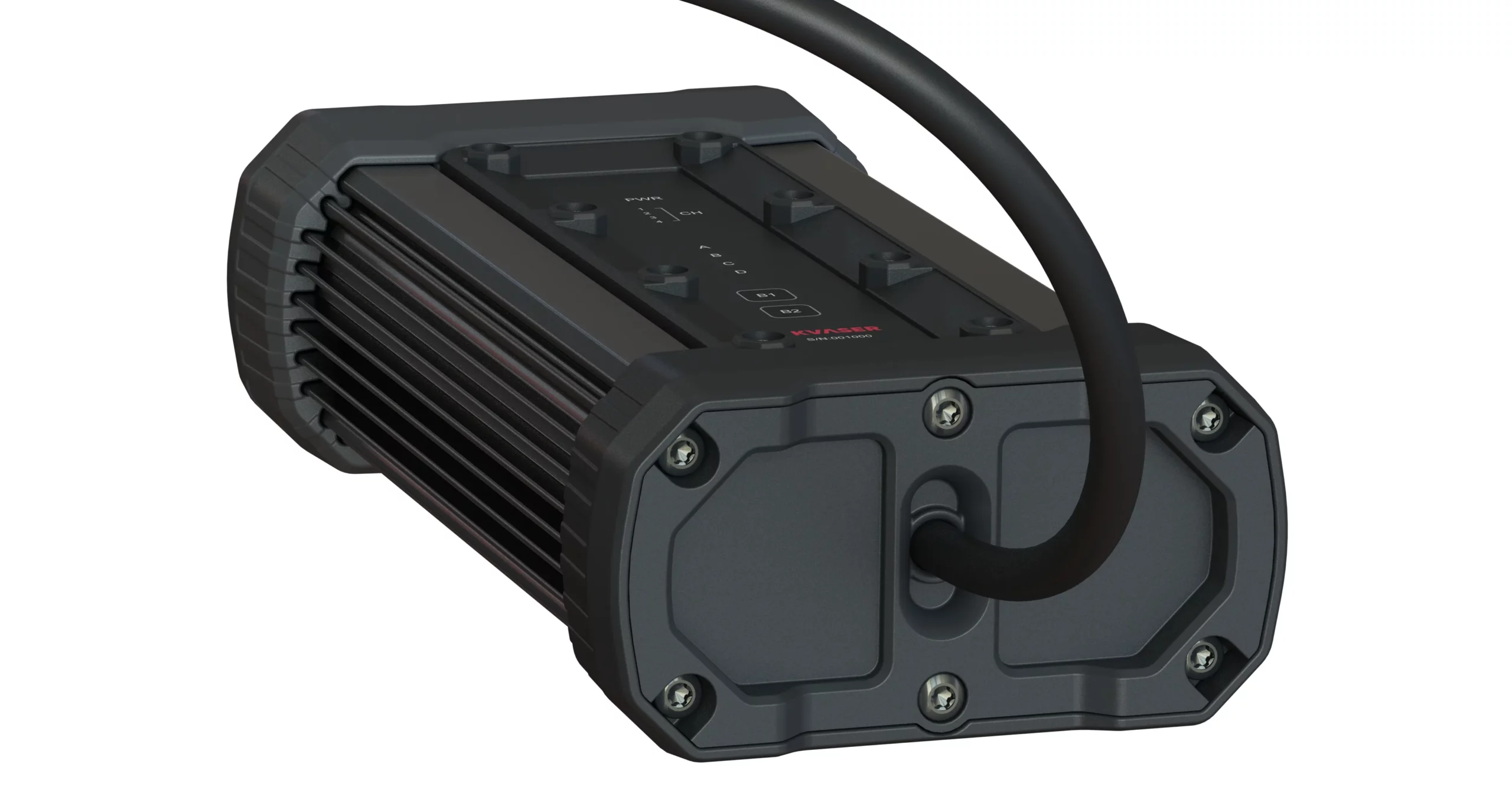

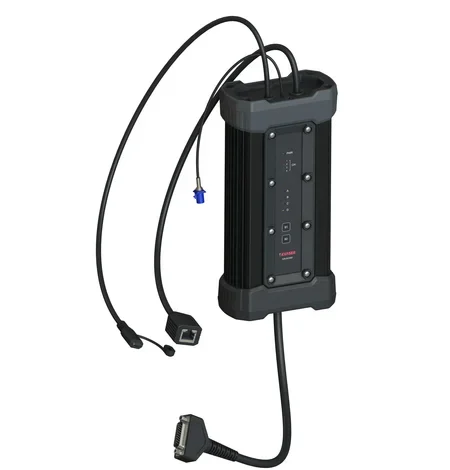

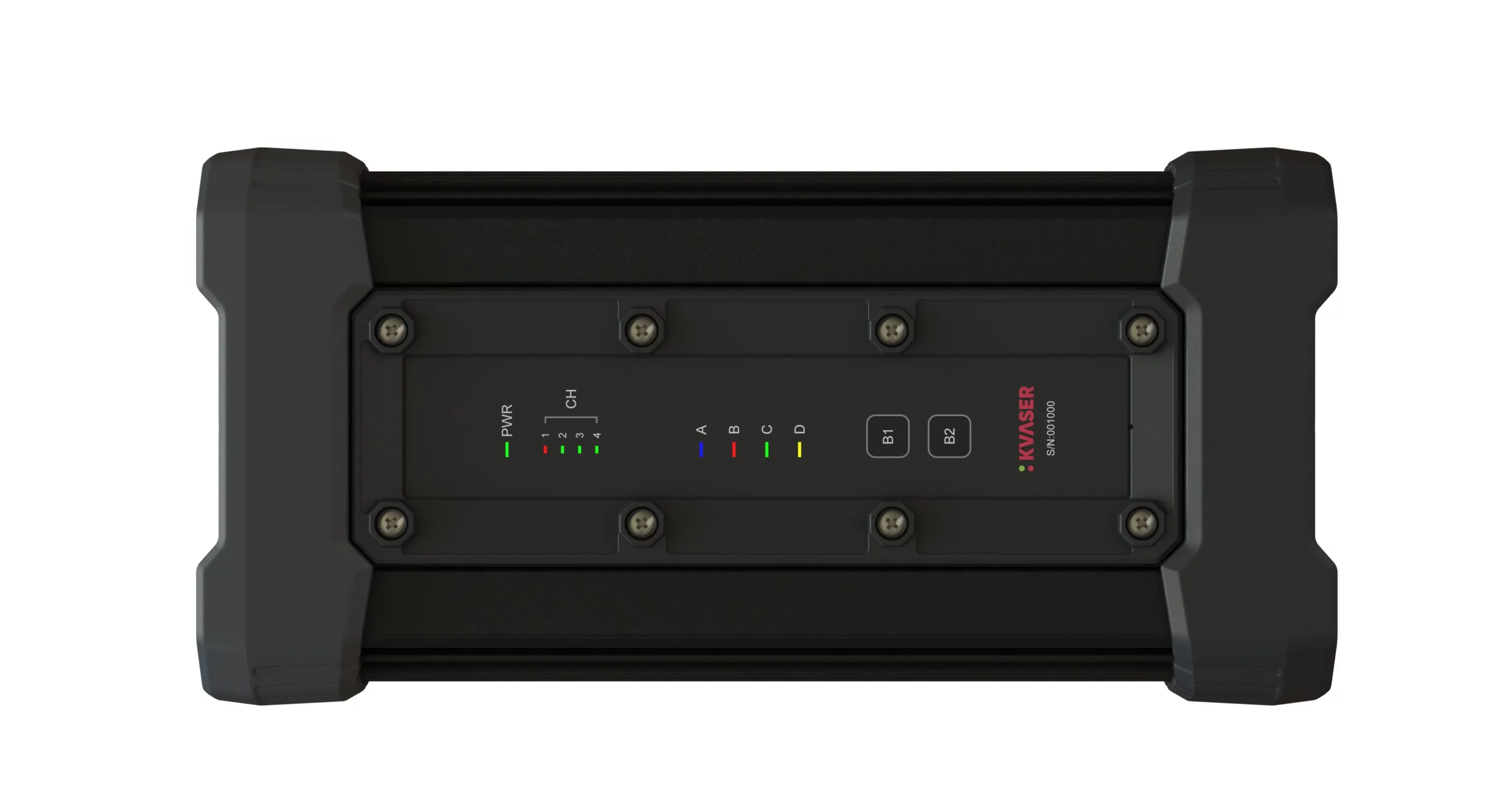

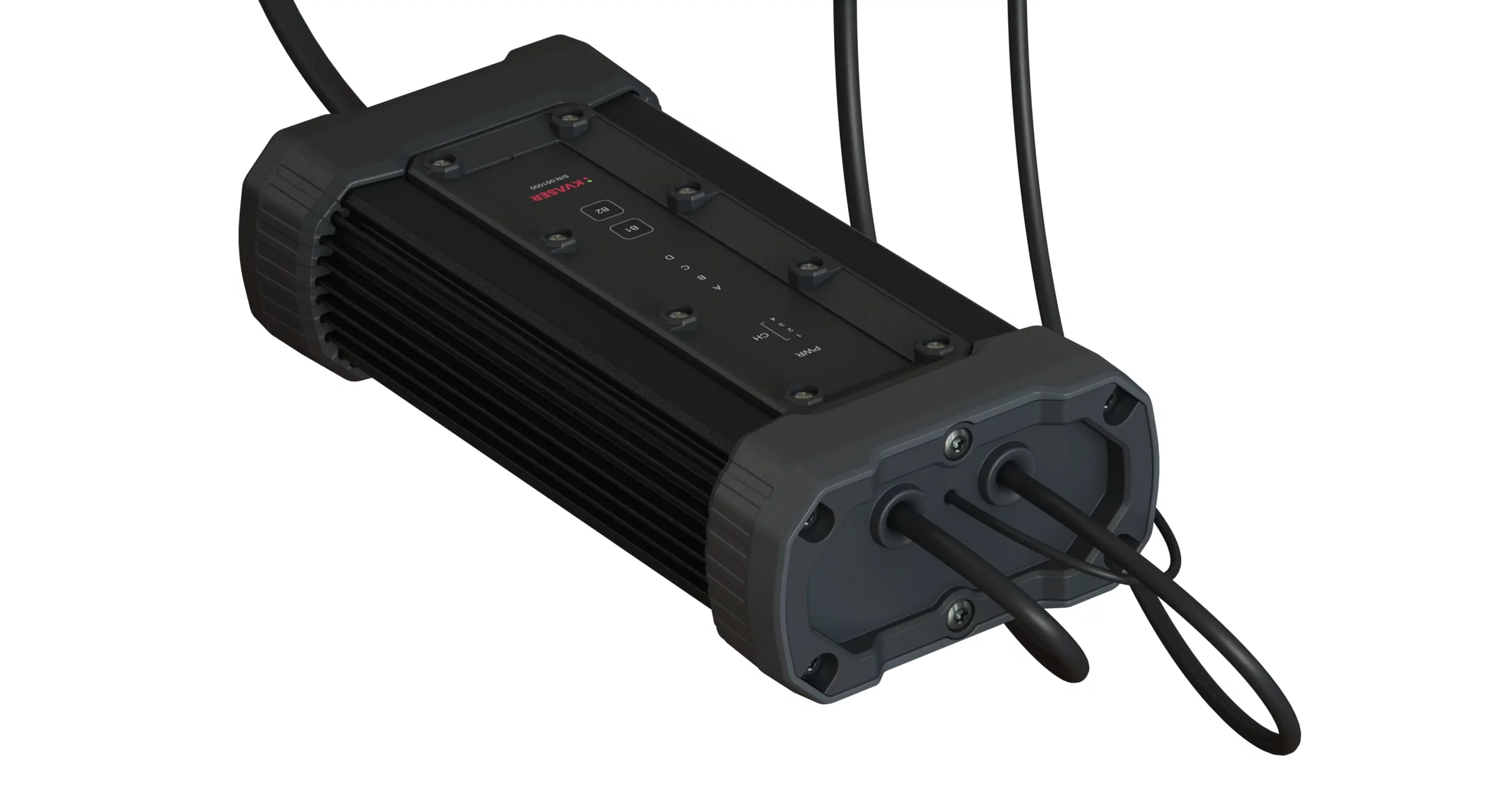

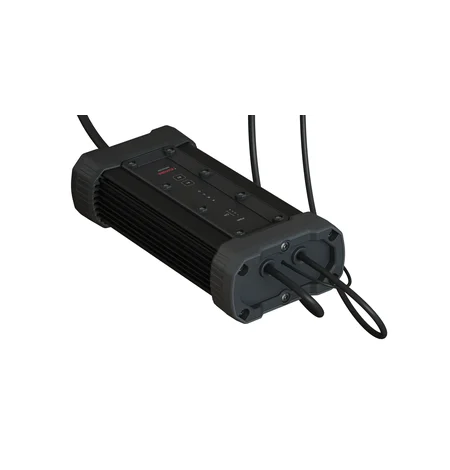

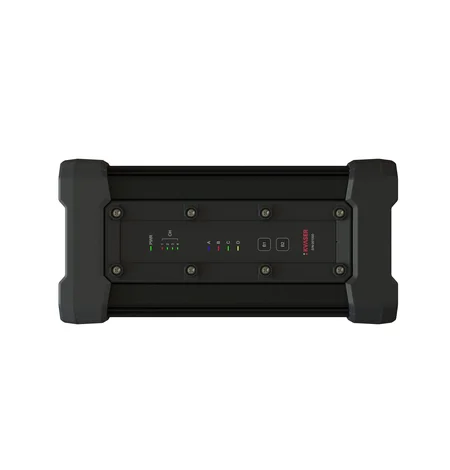

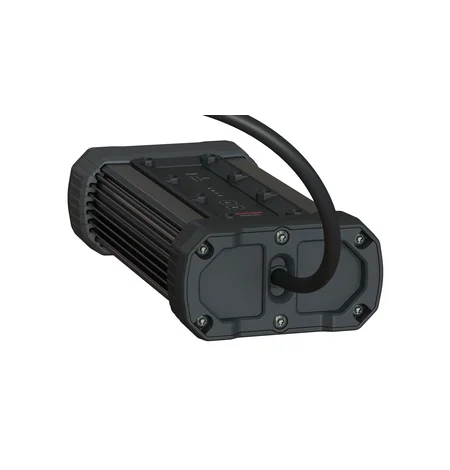

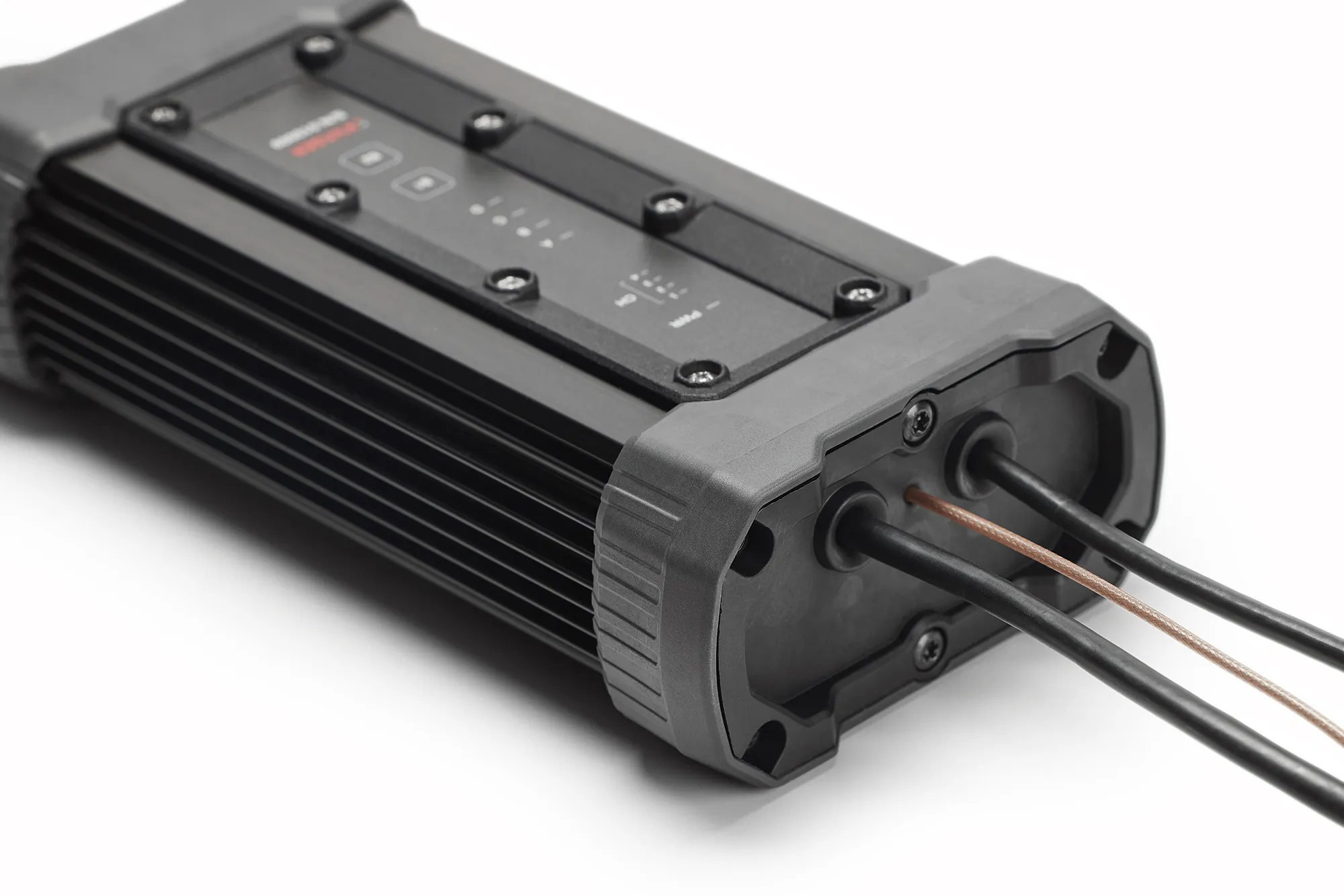

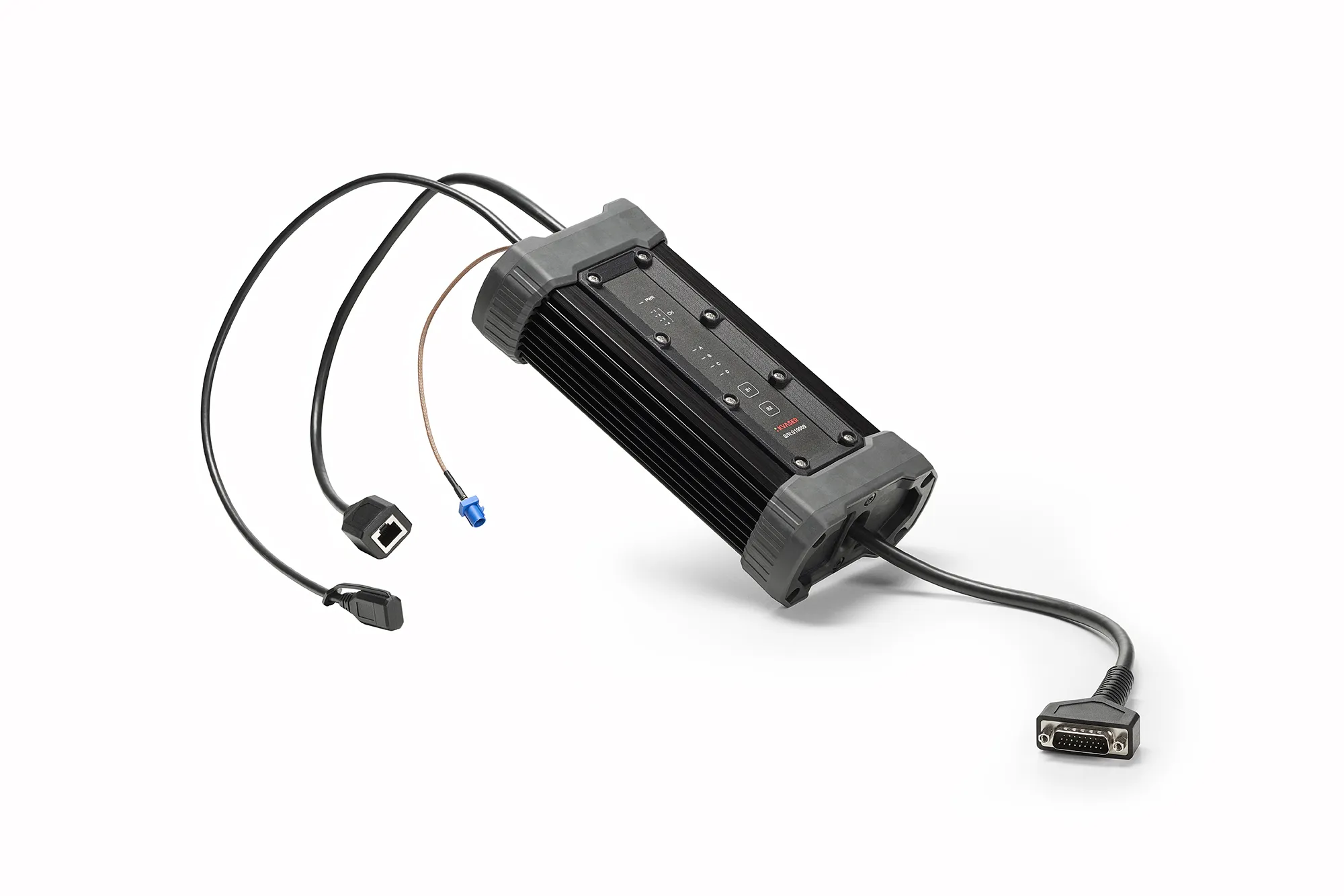

ShareKvaser Edge 4xCAN

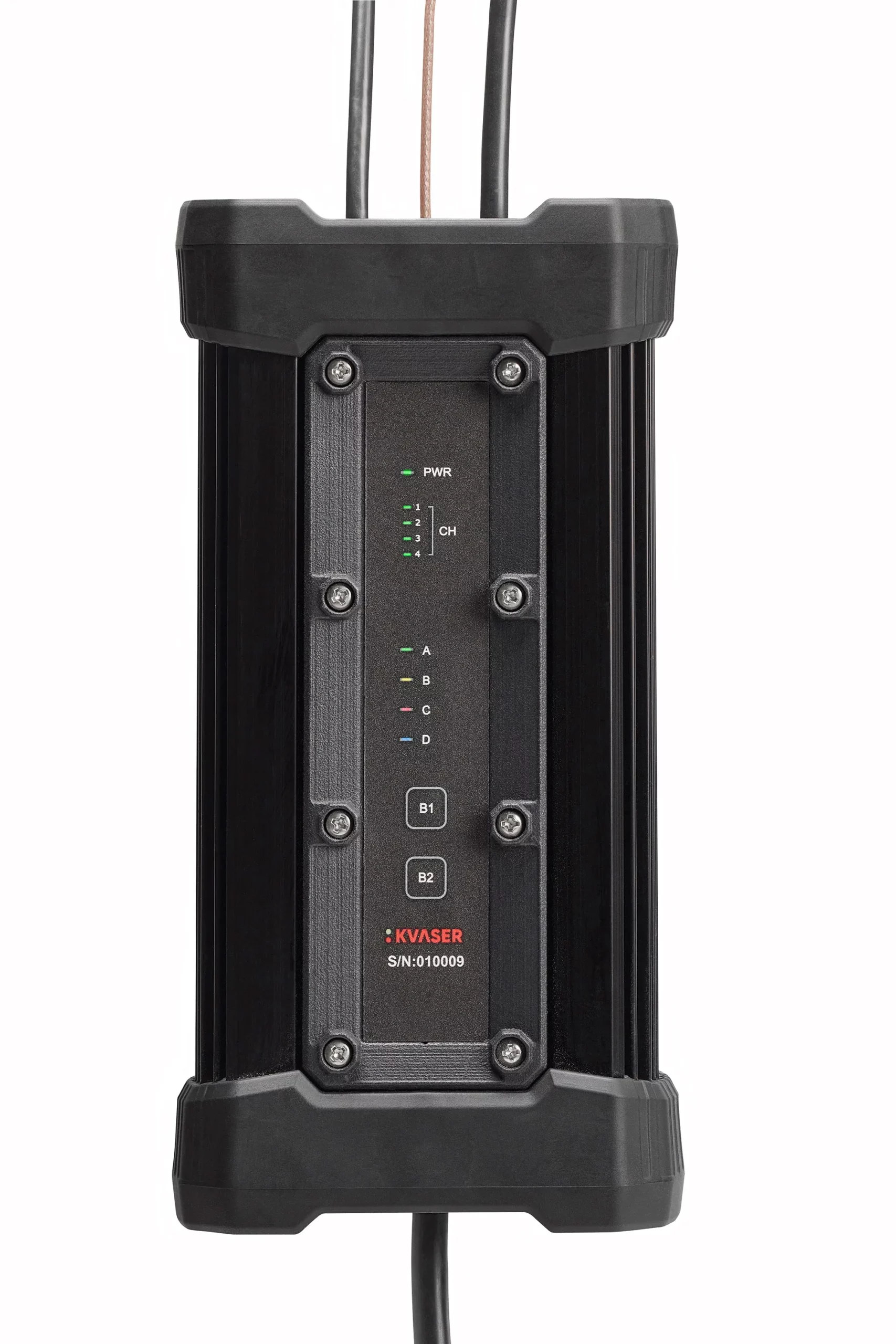

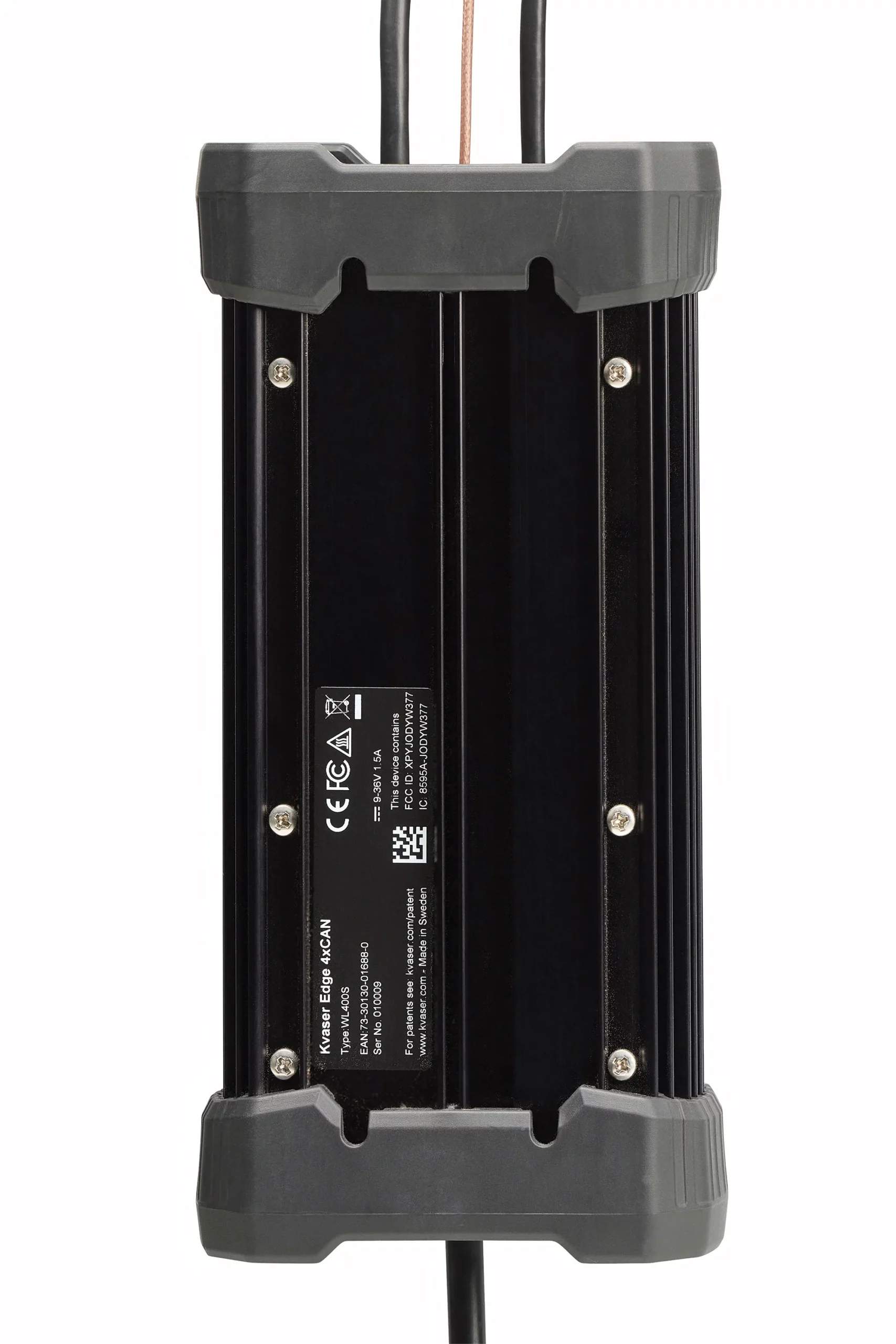

The Kvaser Edge is a highly customizable system platform. Kvaser provides the hardware support and host OS layer, while the customer selects and installs the preferred Linux distribution along with the application and its dependencies. The customer configuration fully defines the factory-reset device behavior.
The Kvaser Edge includes a dedicated Secure Element (NXP SE051C2) that provides strong, hardware-based protection. It securely manages encryption keys and authentication, similar to a TPM. This enhances system security and supports compliance with IEC 62443 and the EU Cyber Resilience Act (CRA).

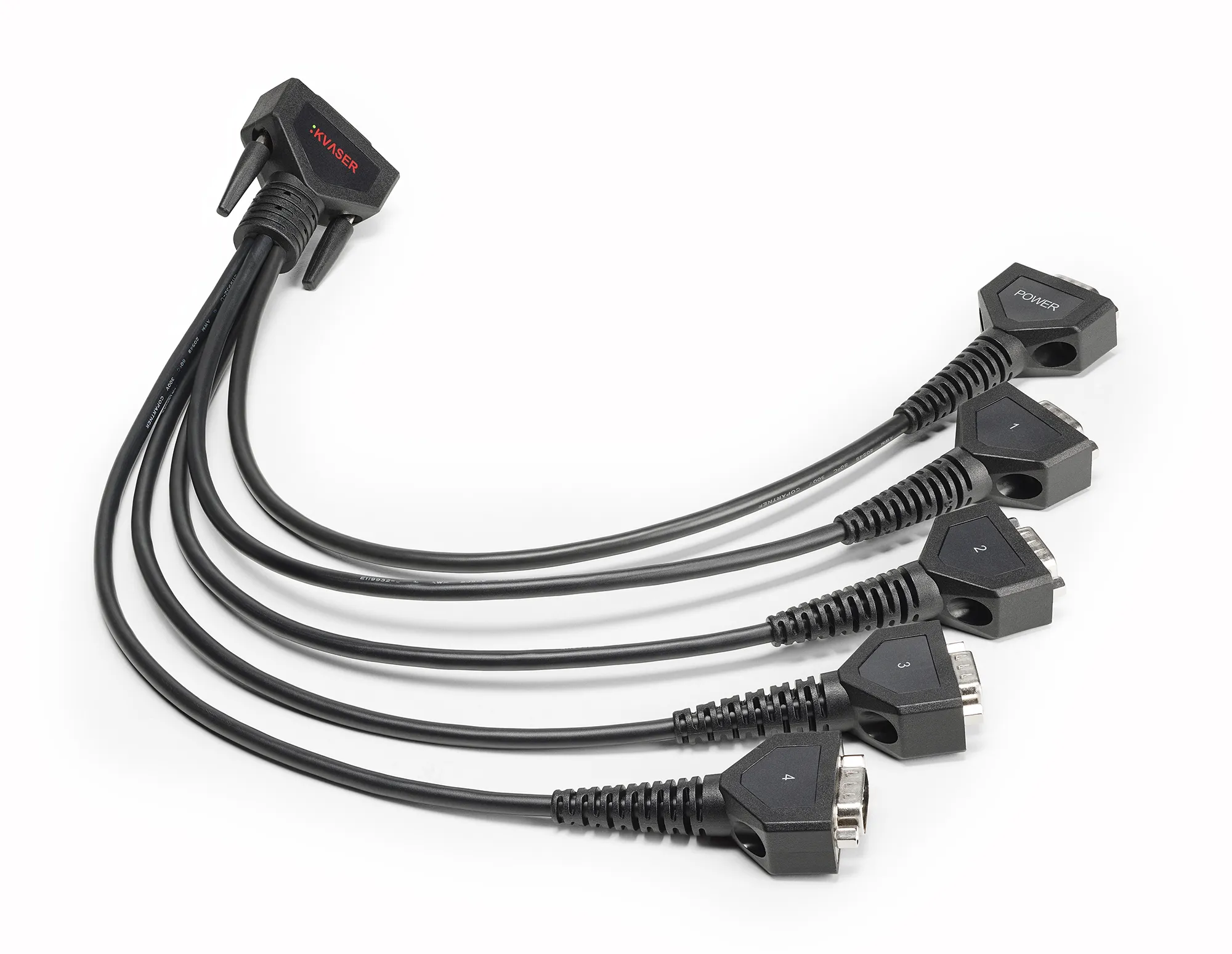

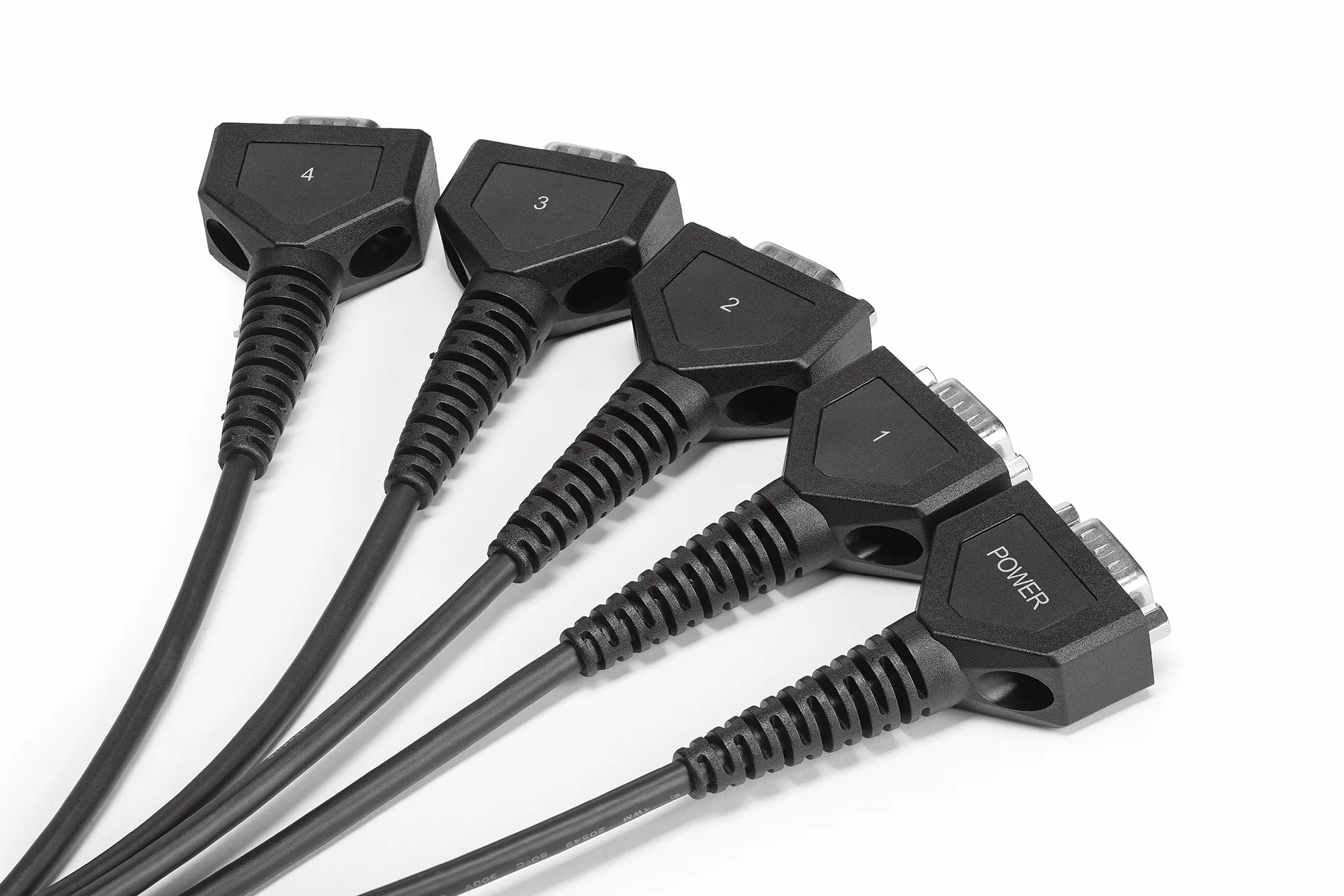

Cable Splitter Edge 1-4, HD26 to 5xDB-9, is a suitable accessory and is sold separately. EAN 73-30130-01688-0.
-
Downloads
-
Description
Major Features
- Powerful embedded ARM-based Linux computer with ”Secure Element”, NXP SE051C2 solutions that facilitates CRA-compliance with target SW-applications.
- Designed for effortless execution of data logging and processing missions at the edge.
- Four fully featured, time-synchronized, individually galvanically isolated CAN-FD channels utilizing Kvaser CAN-IP implemented in FPGA.
- WiFi6 and Gigabit Ethernet Interface enables remote conectivity.
- Ruggedized housing.
- Ingress protection, IP67
- Wired intefaces for durable flexible connections.
- Positioning and inertial measurement units.
- Galvanic Isolated GPIO intefaces that enables trigger based logging.
- Separate galvanic isolated power supply with support of activation by ignition signal.
- Powerful battery secures safe shut down and enables intermediate operation.
- Multi-GNSS (Global Navigation Satellite System) support (GPS, Galileo, GLONASS) for enhanced positioning accuracy and reliability
-
Tech Specs
CertificatesCE
Colorblack
Network Channel(s)4 x CAN HS
Operating systemsLinux
Temperature range-20 °C to 50 °C
Weight850 g
WifiWiFi6 IEEE 802.11ax, Dual Band, 2x2 MIMO (5GHz), Antenna Diversity, Integrated antennas
-
