EAN: 73-30130-01688-0

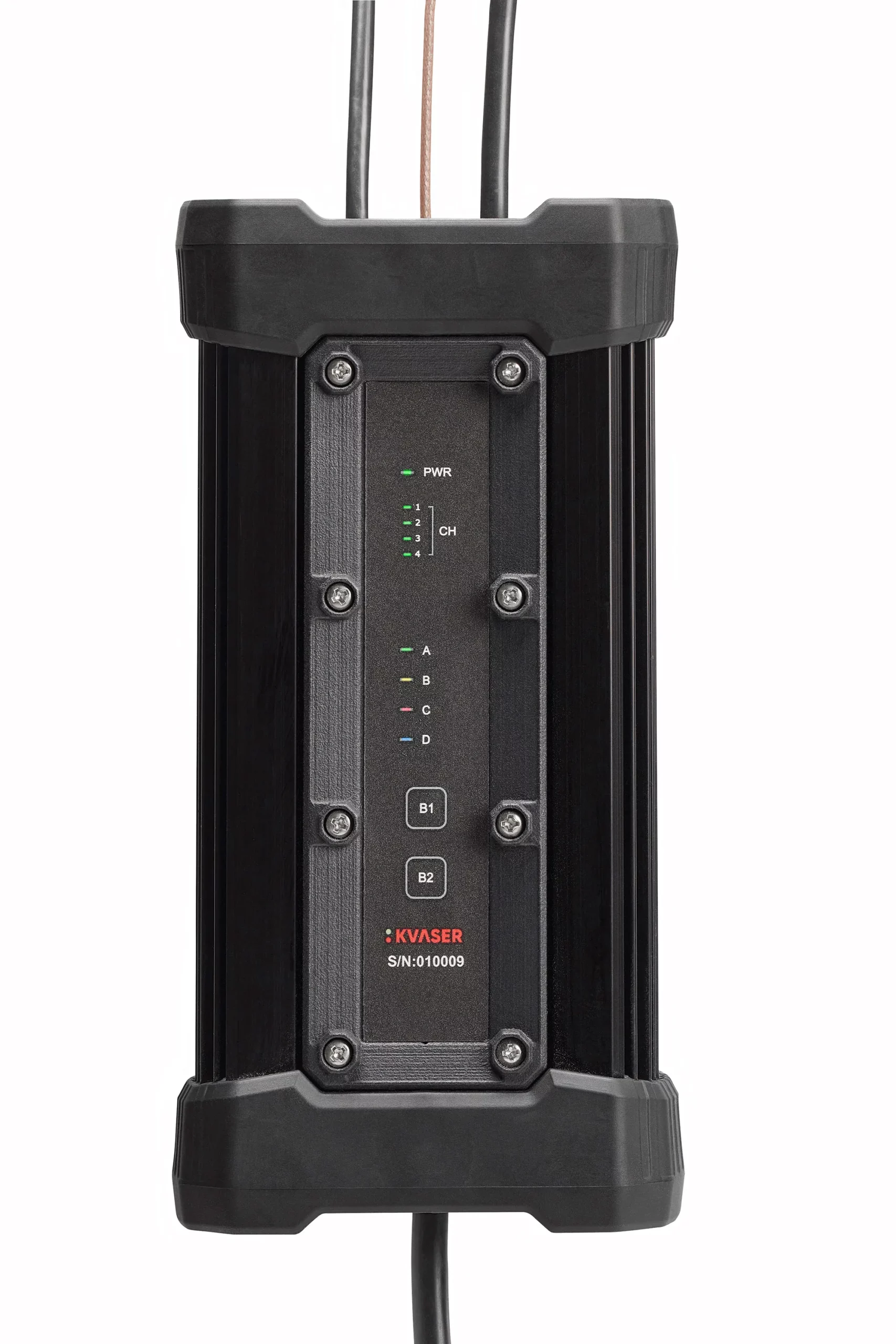

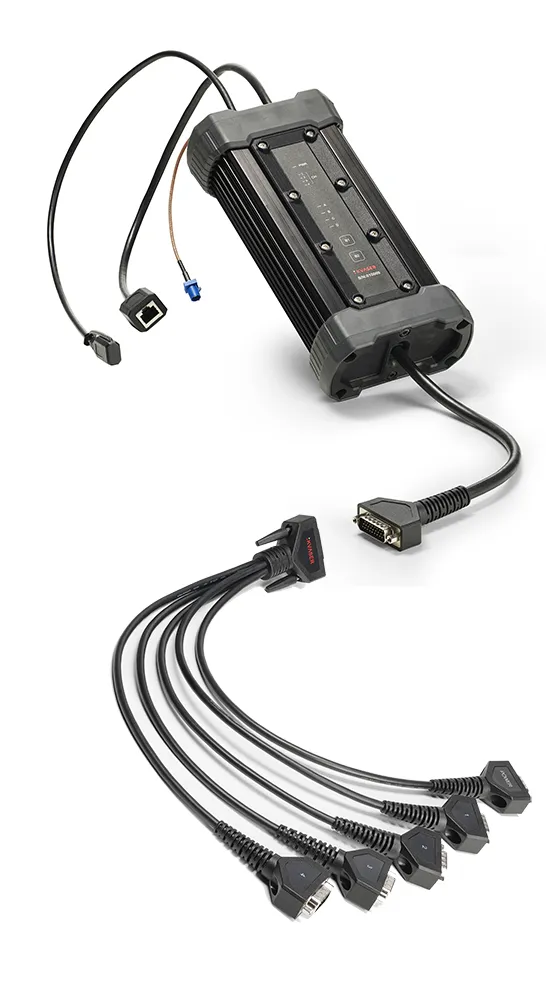

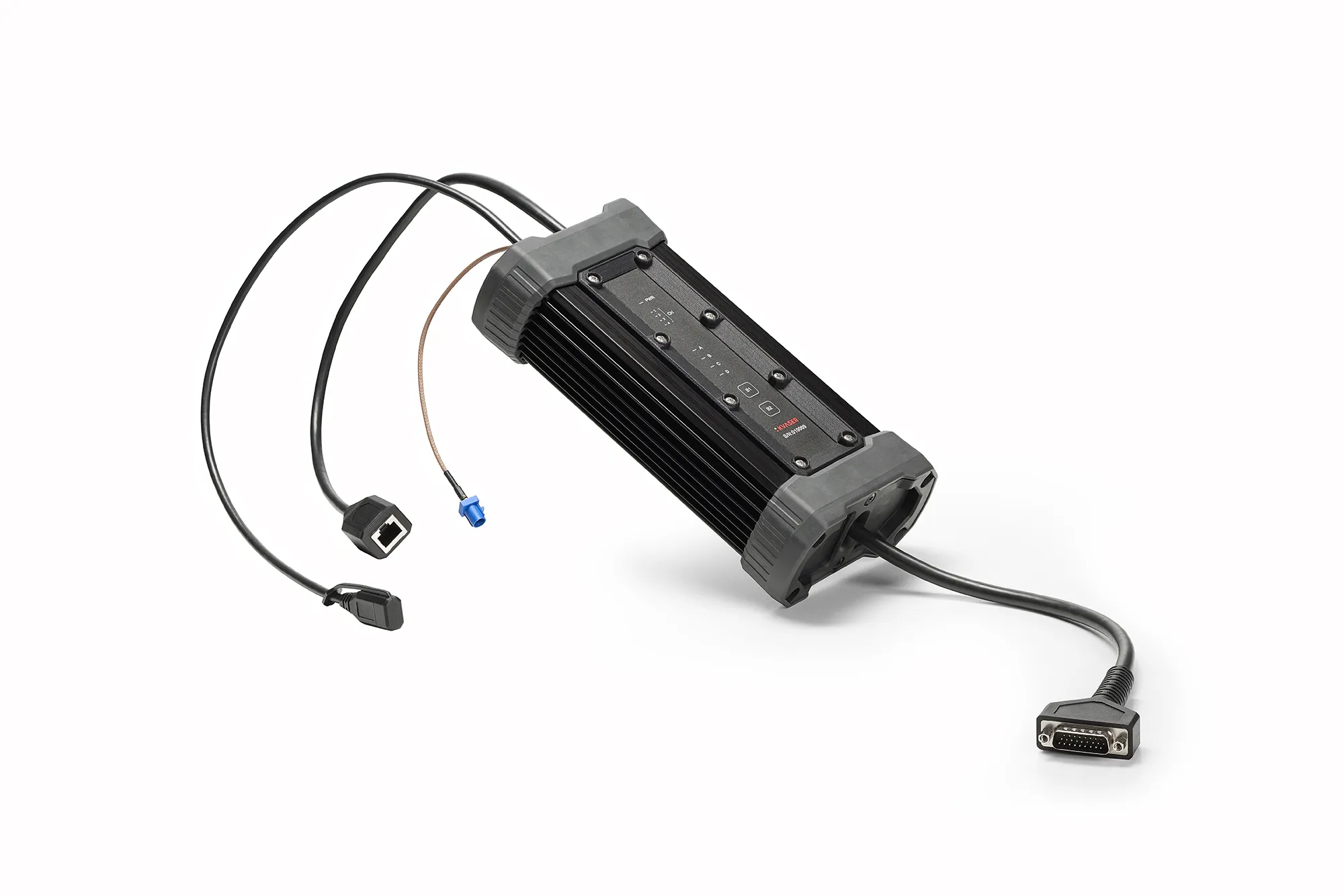

ShareKvaser Edge WL400S






















The Kvaser Edge is a secure, rugged ARM-based Linux computer tailored for demanding real-time data acquisition, edge analytics and seamless cloud integration, all within a compact form factor.
Beyond its robust hardware, the Kvaser Edge offers flexibility through our containerized software architecture, Kvaser OS (KEOS)
ensures secure isolation. You can choose your Linux distribution, use apps for data processing, and retain full control of your data
and intellectual property. This makes Kvaser Edge ideal for proof of-concept testing or scalable production.
-
Downloads
-
Description
Major Features
- Designed for effortless execution of data logging and processing missions at the edge.
- Powerful embedded ARM-based Linux computer with ”Secure Element”, NXP SE051C2 faciliating CRA compliance with target software applications.
- Four fully featured, time-synchronized, individually galvanically isolated CAN-FD channels utilizing Kvaser CAN-IP implemented in FPGA.
- Wi-Fi 6 and Gigabit Ethernet Interfaces enables remote connectivity.

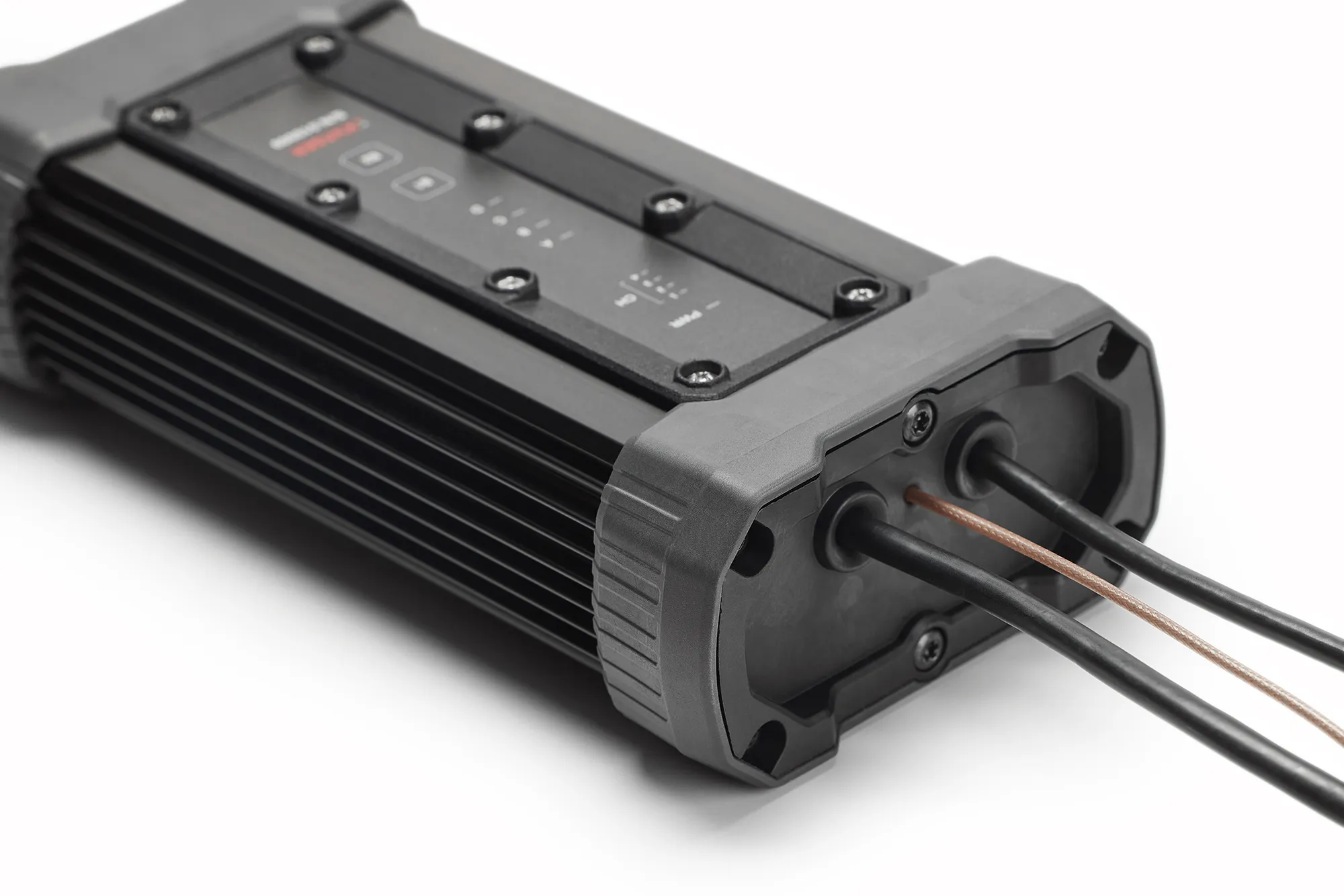

- Ruggedized housing with IP67 ingress protection.
- Wired intefaces for durable flexible connections.
- Integrated positioning and inertial measurement units.
- Galvanically isolated GPIO intefaces enabling trigger-based logging.
- Separate galvanically isolated power supply with support of activation via ignition signal.
- High-capacity battery ensures safe shutdown and supports intermediate operation.
- Multi-GNSS (Global Navigation Satellite System) support (GPS, Galileo, GLONASS) for enhanced positioning accuracy and reliability.
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com. -
Tech Specs
CAN FD BitrateUp to 8 Mbit/s
CertificatesCE, FCC
Channels4

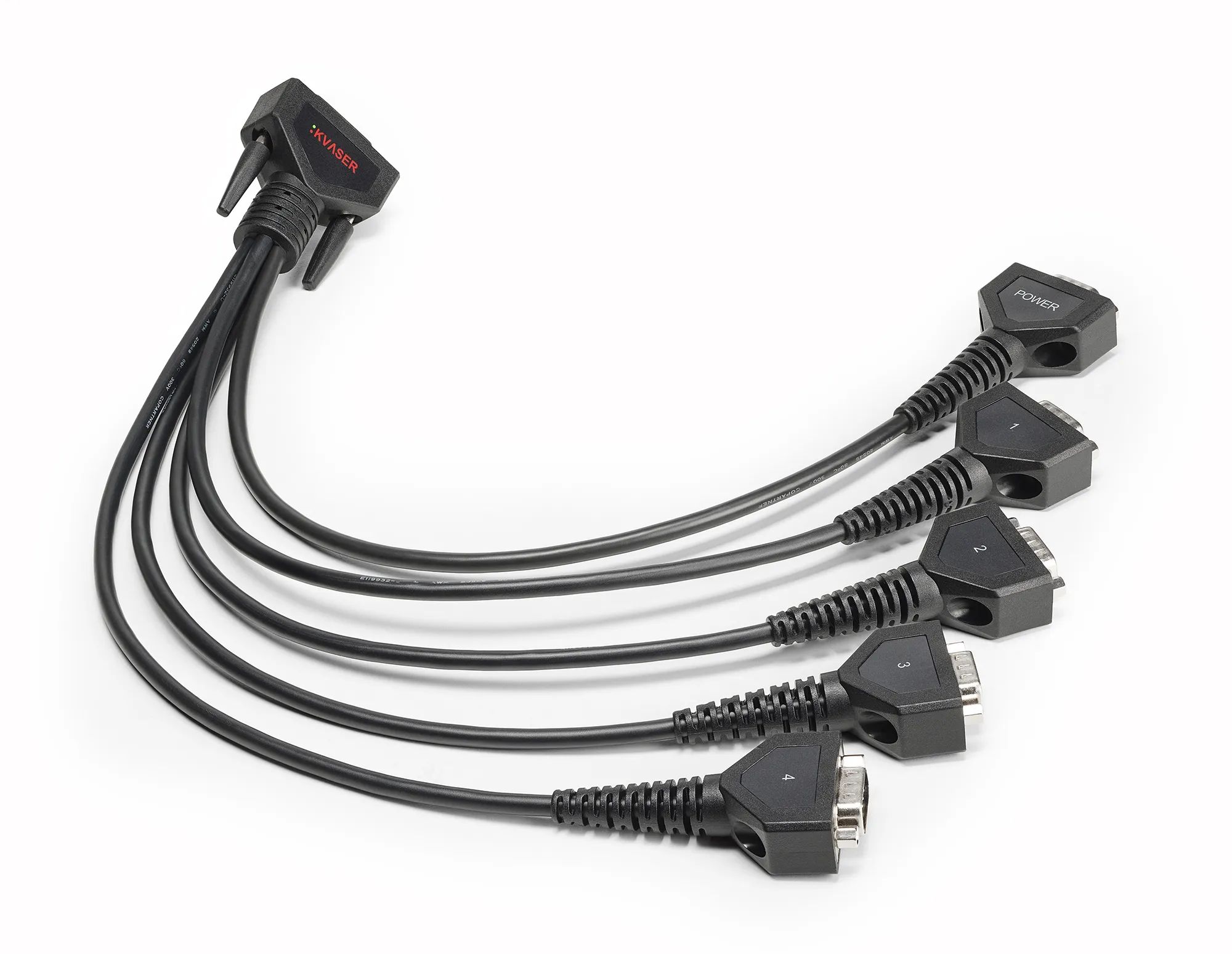

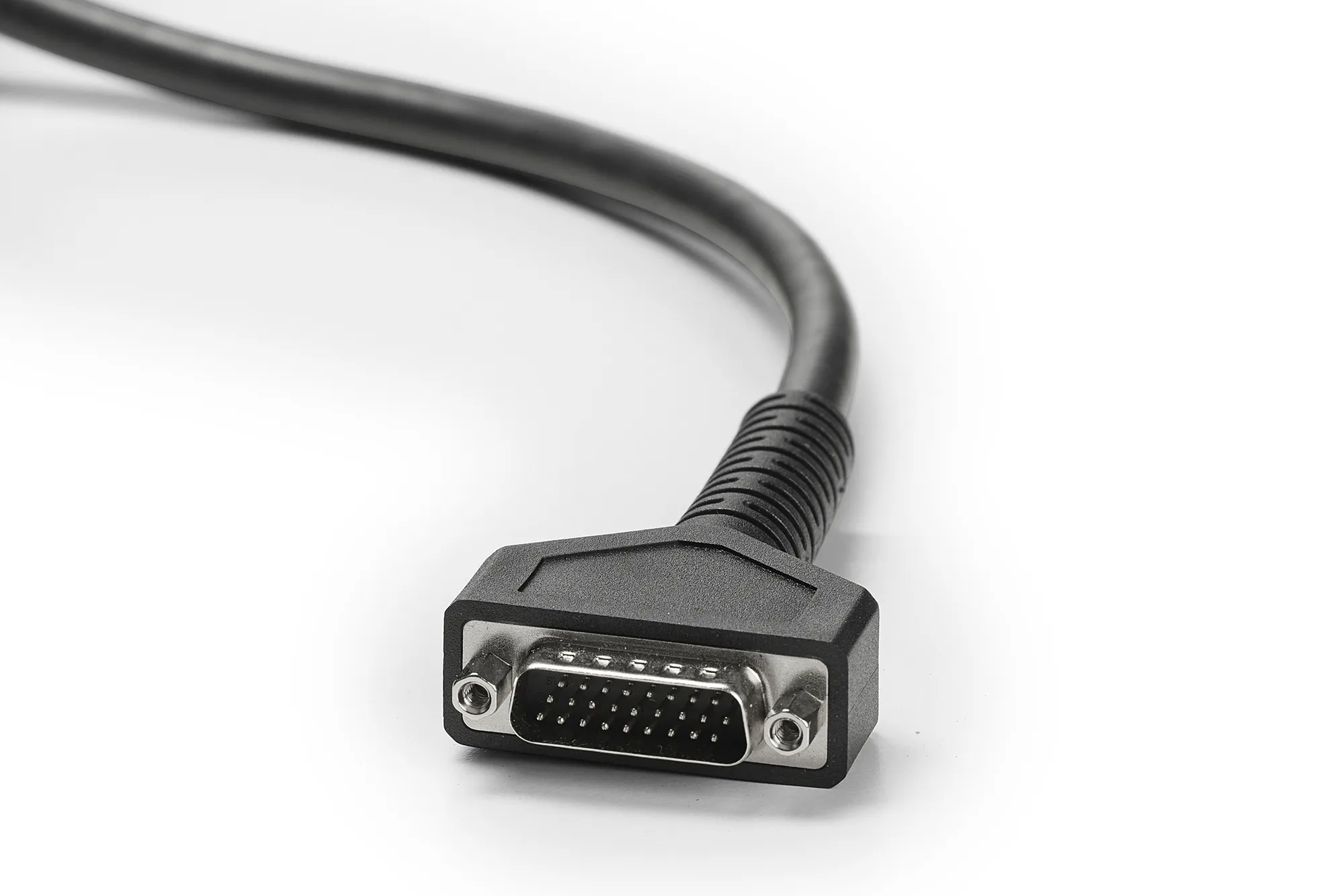

Connector26-pin HD D-SUB
Height58 mm

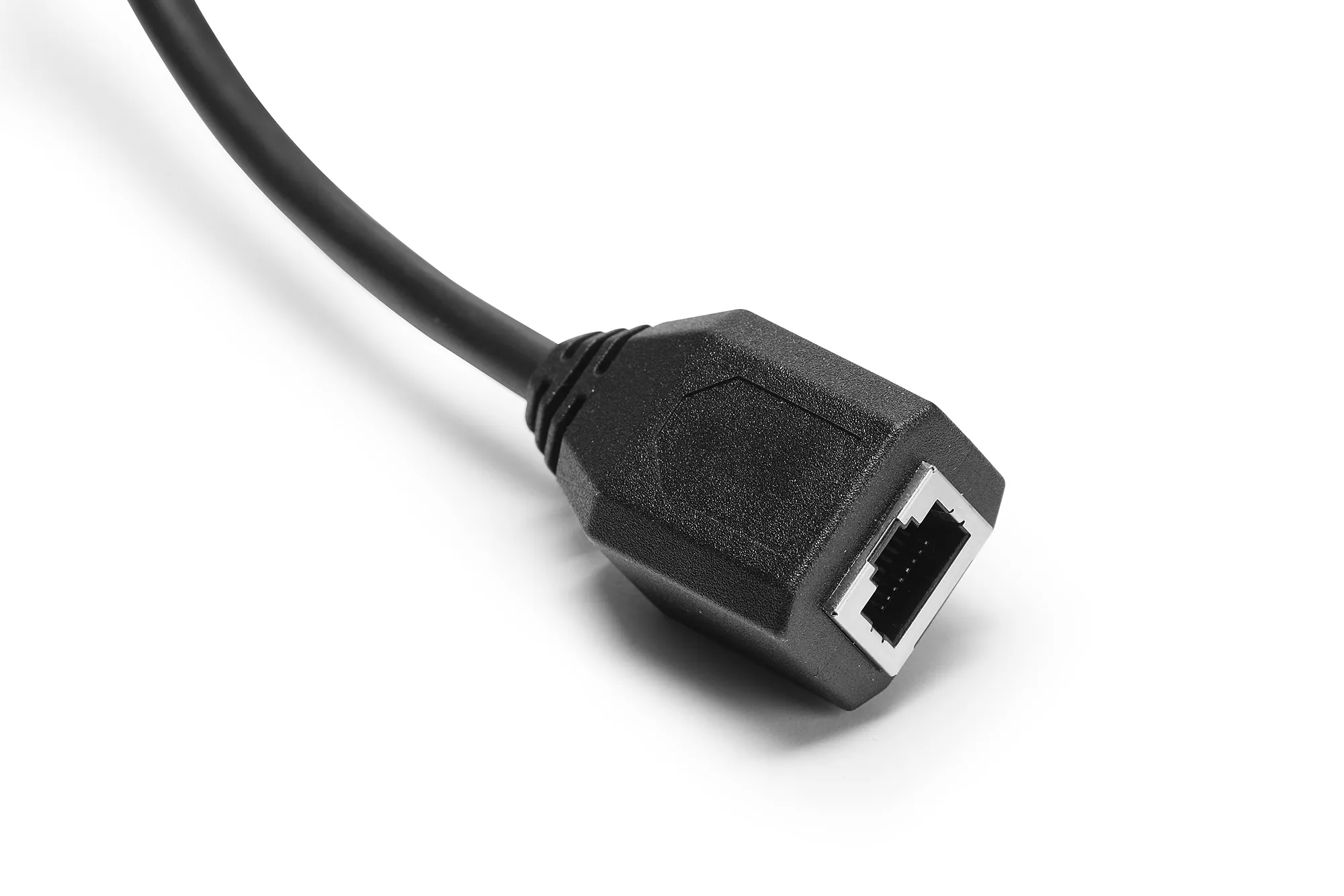

Interfaces PCEthernet RJ45
Length200 mm
Network Channel(s)4 x CAN
Operating systemsLinux
Products GroupsCAN Loggers
Ram2 GB
Weight850 g
-
