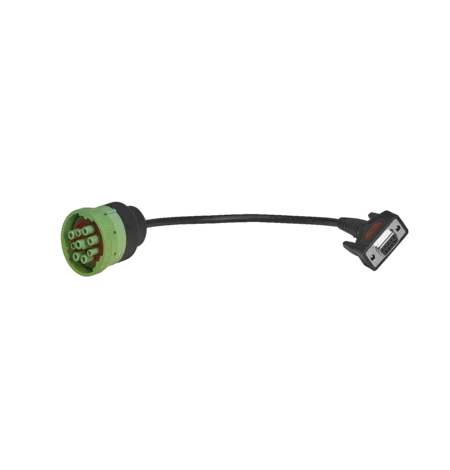

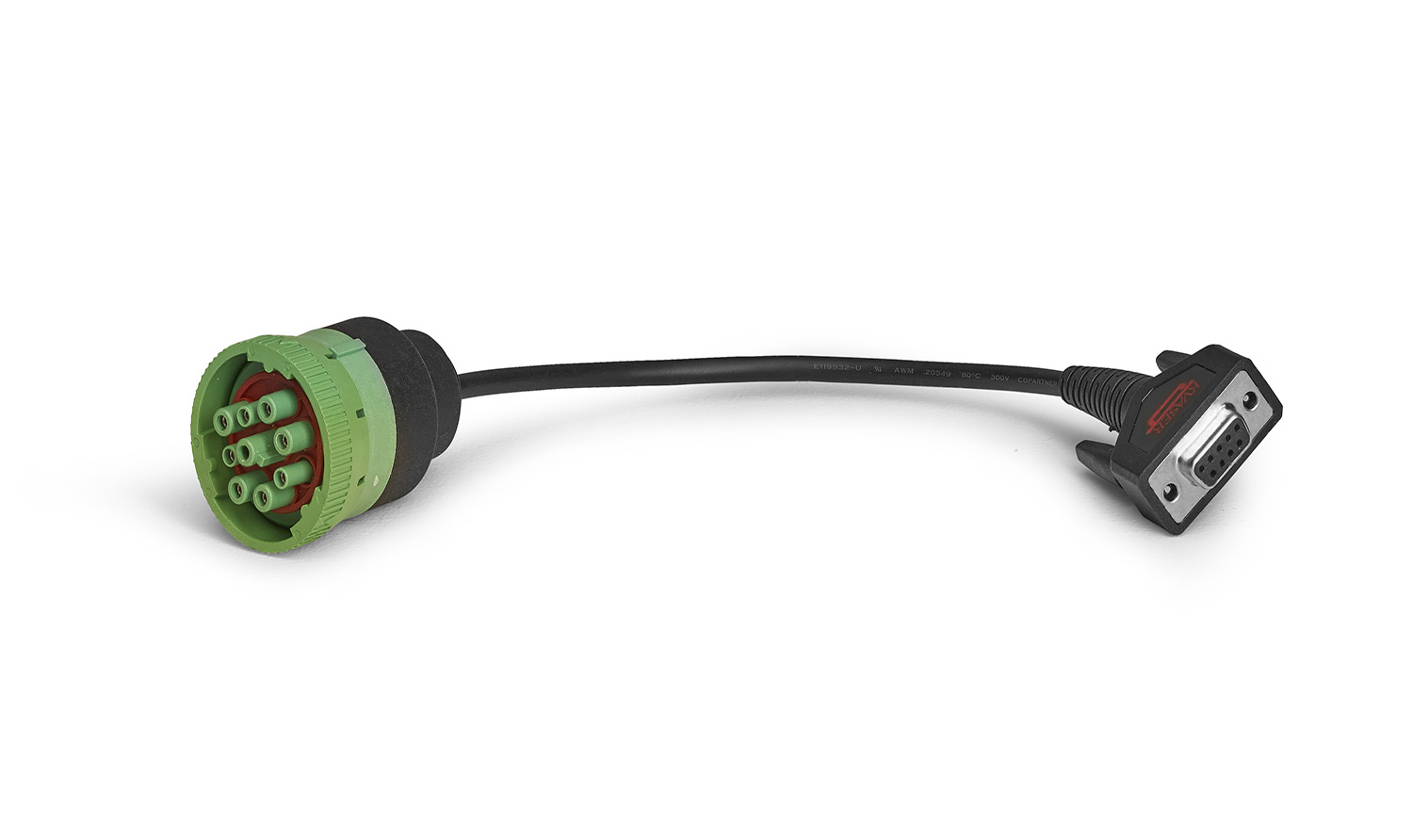

With a standard 9-pin Dsub at one end and a 9-pin J1939-13 Type II compliant CAN connector at the other, this 30 cm cable connects the Kvaser Leaf v3 or any CAN interface to a heavy-duty vehicle. Kvaser’s adapter cables have an IP67-rated, ruggedised construction that meets demanding use cases. An in-house designed compact J1939-13 connector attaches to the cable with extra strong strain relief, allowing the cable to bend easily to 90 degrees.
-
Downloads
-
Description
Major Features- Standard 9-pin Dsub connector

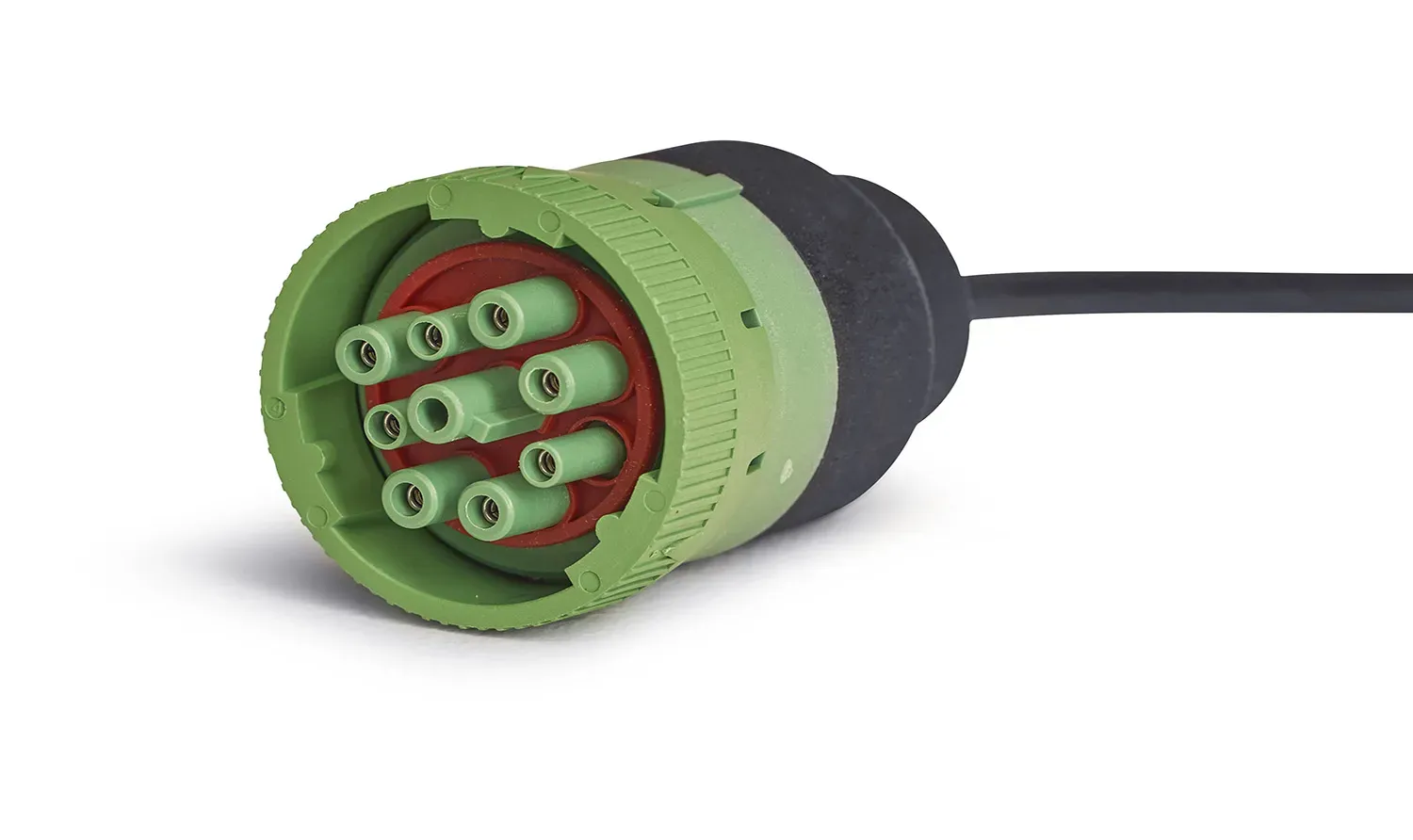

- J1939-13-Type II connector
Learn more:
Youtube:Â Kvaser CAN adapter cables
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
Free Technical Support on all products available by contacting support@kvaser.com. -
Tech Specs
CertificatesCE, RoHS
Channels1
Connector AJ1939-13 Type II
InterfacesCable
Length300 mm
Maximum Bitrate (kbps)8000 kbps
Temperature range-40 °C to 85 °C
Weight103 g
-
