Major Features

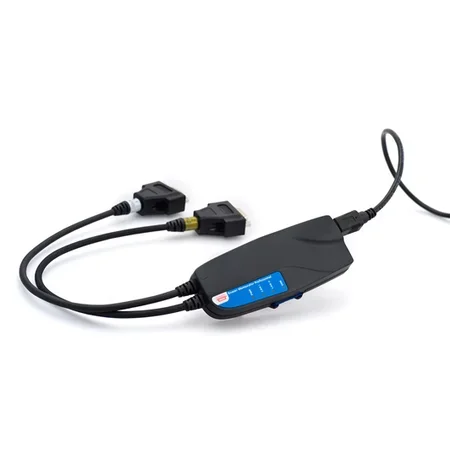

• One device for desktop and laptop, combining a standalone CAN bus data logger and a USB CAN bus interface.
• Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B) identifiers.
• CAN messages are time-stamped with 2 microseconds resolution.
• Large on-board RAM buffer for CAN messages.
• One High Speed CAN connection (ISO-11898-2); & One Low Speed CAN connection (ISO 11898-3).
• Galvanic isolation to protect the hardware.
• Power from CAN bus or from the USB side.
• Built-in real time (calendar) clock with battery backup.
• Logger status is indicated with five externally visible LEDs.
• Driver support for major operating systems.
• Support for Kvaser Linx J1587.
• Support for SocketCAN, see elinux.org for details.
• NOTE:  Product ships with Commercial Grade SD card (-20 to +70°C).  Industrial Grade SD cards (-40 to +85°C) are available for additional purchase.  Contact your local Kvaser office for details.

Filters

• Log continuously, or logging can be triggered by creating advanced triggers based on messages, data signal values, error messages, external trigger's falling or rising edge, and I/O signals.
• Pre- and post-triggers are available without buffer size restrictions, limited by disk space only.
• Filter out selectable messages and/or signals to be logged. The identifiers can be picked from a database, or all messages can be logged.
• Support for pass as well as stop filters.
• Create a counting pass filter to have a message logged at enumerated occurrence.
• Handles up to 20,000 msgs/s in standalone logger mode.
• External digital output that can drive an LED or a buzzer.
• Less than 250 ms boot up time.
• Supports Silent Mode - Log bus traffic safely without interfering and "listen-only" mode for bus analysis tools.

Memory Cards and Functions

• Standard MMC or SD type flash memory cards can be used up to 2GB.
• Support up to 32GB SDHC cards.
• Set up several devices in a daisy chain for larger logging capacity.
• Transfer recorded data over the USB interface at 1.4 MB/s or an SD card reader at 15 MB/s.
• NOTE:  Product ships with Commercial Grade SD card (-20 to +70°C).  Industrial Grade SD cards (-40 to +85°C) are available for additional purchase.  Contact your local Kvaser office for details.

Configuration Software in the PC

• Easy to use graphic configuration tool - Memorator Tools.
• Configuration of the CAN controller, i.e. bit rate and filters.
• Configuration of the trigger conditions.
• Configuration of filter for messages to be stored.
• Configuration upload and download via USB.
• Using the included Kvaser Dispatcher software, a complete measurement setup can be turned into a self-installing package that is sent to a remote location to carry out a specific logging task.

Warranty

• 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

• Free Technical Support on all products available by contacting support@kvaser.com.

Software

• Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
• Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
• All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
• J2534 Application Programming Interface available.
• RP1210A Application Programming Interface available.
• On-line documentation in Windows HTML-Help and Adobe Acrobat format.
