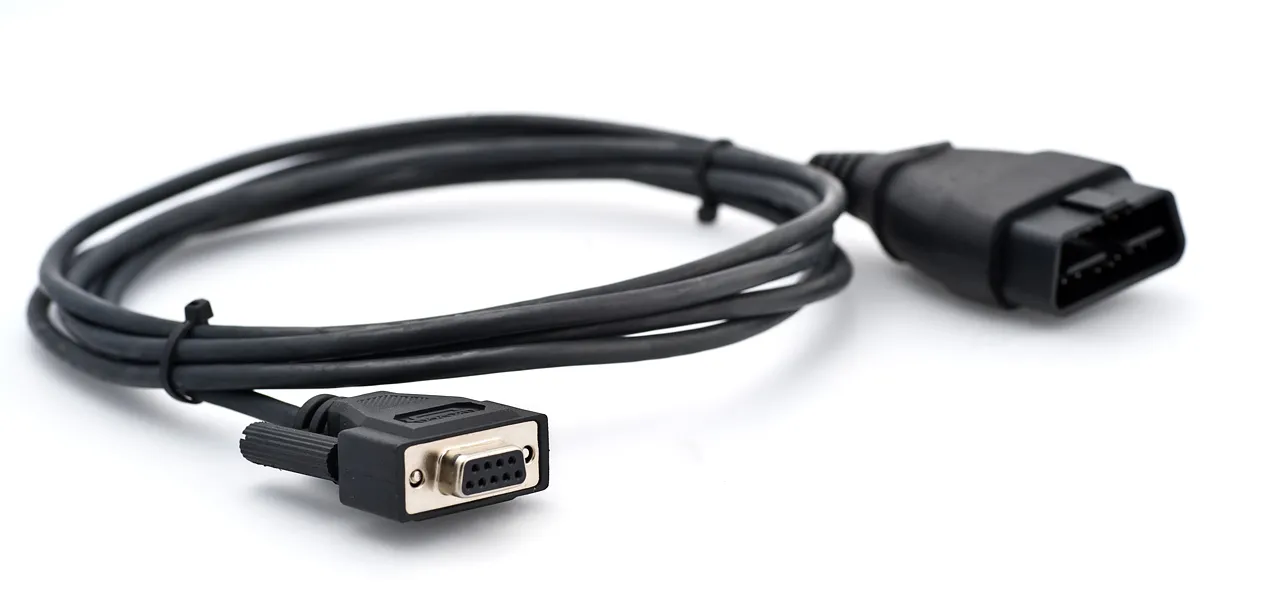

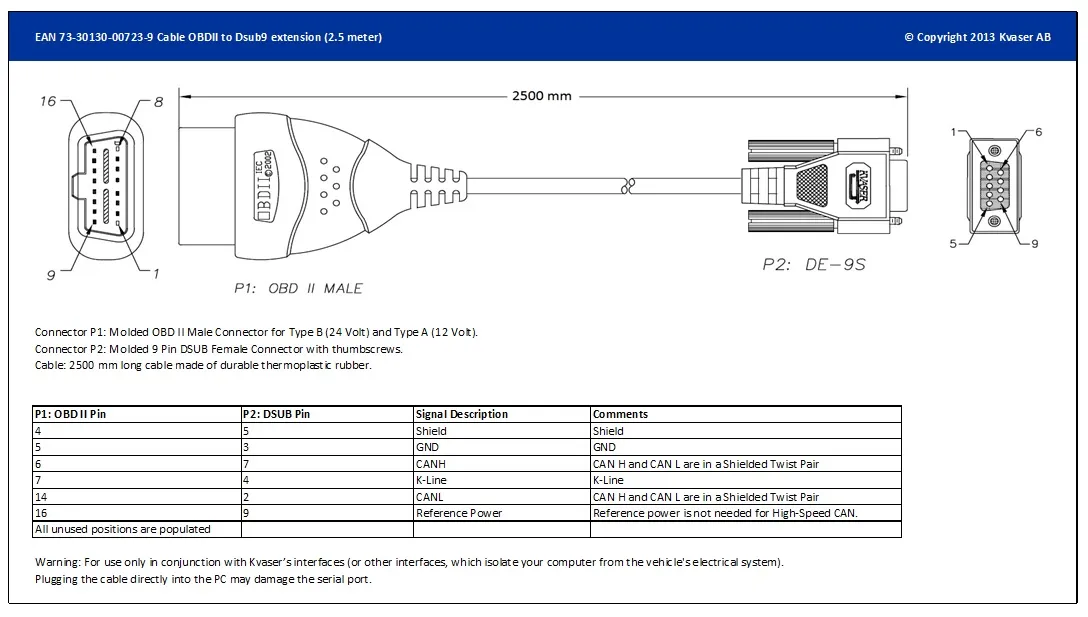

A Kvaser OBD II Adapter Cable connects any Kvaser CAN bus interface with a DSUB9 socket connector to any vehicle with an OBD II (J1962) connector. Supports K-Line.
-
Downloads
-
Description

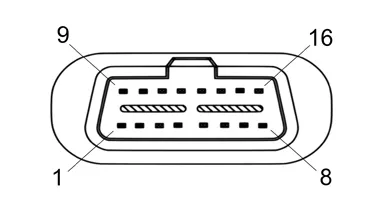

Major Features- Molded OBD II (SAE J1962) pin connector, for Type A (12 Volt) as well as Type B (24 Volt).
- Molded 9 pin DSUB socket connector with thumbscrews.
- 2500 mm (approx. 8 ft) long cable made of durable thermoplastic rubber.
- Designed for Kvaser's High-Speed, Low-Speed and Single-Wire CAN interfaces.
- Perfect for Kvaser Memorator, Kvaser Leaf Professional, etc.
- Supports K-Line.
Warranty2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
ÂSupportFree Technical Support on all products available by contacting support@kvaser.com. -
Tech Specs
Maximum Bitrate (kbps)N/A
ColorN/A
Country of originN/A
DimensionsN/A
Minimum Bitrate (kbps)N/A
HeightN/A
Length2500 mm
Weight160 g
Connector AN/A
Connector BN/A
MagiSyncN/A
InterfacesCable
CAN FD BitrateN/A
Timestamp Resolution (µs)N/A
API, freeN/A
Casing MaterialN/A
Clock SyncN/A
Error Frame DetectionN/A
Error Frame GenerationN/A
Galvanic IsolationN/A
CertificatesCE, RoHS
Channels1
Included Card SizeN/A
Max Card SizeN/A
Messages Per Second ReceiveN/A
Messages Per Second SendingN/A
SoundN/A
Operating systemsN/A
Temperature range-30 °C to 85 °C
