EAN: 73-30130-00869-4

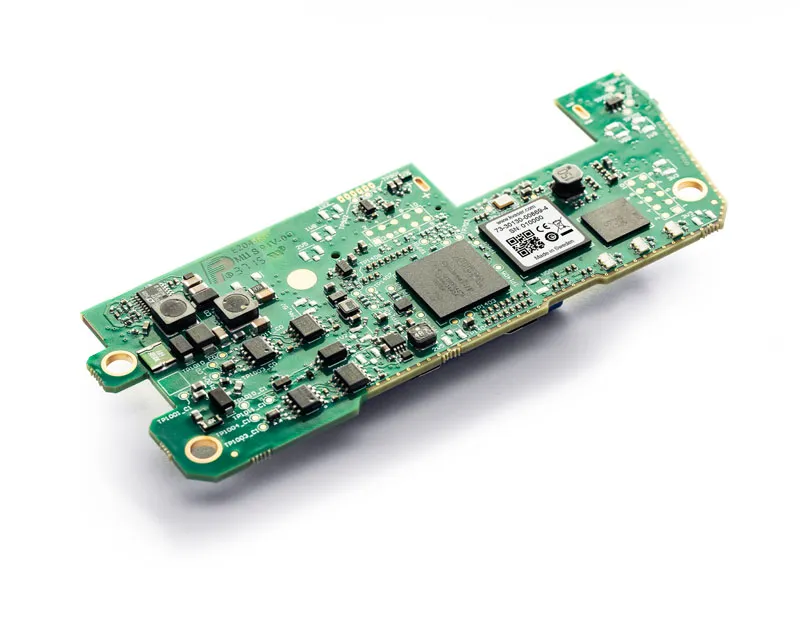

Kvaser Memorator Pro 2xHS v2 CB
Professiol dual channel standalone data logger and USB-to-CAN/CAN FD interface with t-Program, circuit board only.
$1,652.00 USD
Kvaser Memorator Pro 2xHS v2 CB is a professional-level, dual channel CAN bus interface and standalone data logger offering advanced features such as message filtering, triggers, error detection and generation, silent mode, an expandable SD card slot up to 64G, and galvanic isolation.
Configurable using Kvaser's Memorator Config Tool, this device is capable of running user-developed scripts, written in the Kvaser t programming language. Guidance in creating t programs is provided. The Kvaser Memorator Pro 2xHS v2 CB is CAN FD compliant.
-
Downloads
Documentation
Download Datasheet
US Letter
Version 2.0.0
Kvaser Database Editor Users Guide
Kvaser Database Editor User's Guide
Version 3.5.240918
Kvaser Memorator Pro 2xHS v2 CB Users Guide
Kvaser Memorator 2xHS v2 CB User's Guide
Version 2.2.240918
Specification of Kvaser Memorator Device configuration XML format
Specification of Kvaser Memorator Device configuration XML format
Driver
Version 4.1.0
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version 5.46.843
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also con
Version 5.46.843
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.
Version 1.17.622
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux. For using generic SocketCAN API. Only needed if current kernel version of SocketCAN does not recognize new hardwar
Firmware
Version 4.34.843
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Development Kits and Tools
Version 5.46.843
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for
Version 23.1.0
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Version 5.46.843
Linux SDK library
Linux SDK library. Provides extended libraries for accessing dbc files, controlling data logger family, and converting/extracting log files.
Version 1.27.606
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Other
Version 6.27.701
Kvaser CanKing
This is the old version of our free, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and includes support for the virtua
Version 3.25.843
Kvaser Database Editor 3
Kvaser Database Editor 3 (candbfd)
Version 5.36.843
Kvaser Memorator Configuration tool
Configuration tool for Kvaser Memorator Pro 5xHS, Kvaser Memorator 2xHS v2, Kvaser Memorator Light HS v2 and Kvaser Eagle
-
Description
Major Features of Kvaser Memorator Pro 2xHS v2 CB:
- Monitor two CAN channels simultaneously using just one device.
- Log data to an expandable SD card slot.
- Supports CAN FD up to 8Mbit/s (with proper physical layer implementation).
- Script functionality allows users to develop customised t-script applications written in the Kvaser t programming language.
- Power derived from the USB connection, CAN or an in-built power supply.
- Supports silent mode for analysis tools – listens to the bus without interfering.
- Detection and generation of error frames and remote frames.
- LED lights alert user to device status, including signalling a full SD card or card error.
- Galvanically isolated CAN bus drivers.
- Automatically time synchronises the data transmitted and received across both buses.
- Built-in Kvaser MagiSyncâ„¢ technology time synchronises with other Kvaser interfaces connected to the same PC, resulting in simpler and more accurate multichannel data capture.
- Extended operating temperature range from -40 to 85 °C.
- NOTE:  Product ships with Commercial Grade SD card (-25 to +85°C).  Industrial Grade SD cards (-40 to +85°C) are available for additional purchase.  Contact your local Kvaser office for details.
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
- Plug and play installation, and a comprehensive user guide to help make t script development quick and easy.
Warranty
Support
Software
- Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
- ​Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Java, Python and Visual Basic.
- All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
- J2534 Application Programming Interface available.
- RP1210A Application Programming Interface available.
- On-line documentation in Windows HTML-Help and Adobe Acrobat format.
-
Tech Specs
Kvaser API, J2534, RP1210
Linux, Win 7, Win 10, Win 8
-
